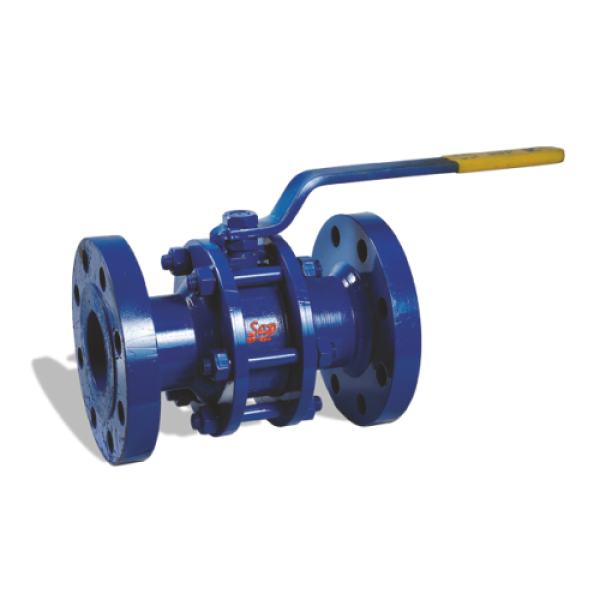

Cast Steel 3PC Flanged Ends Full Bore Ball Valve A.S.A 150#
Roll over image to zoom in
₹793.00 – ₹34,940.00 (Shipping Extra) (-5%)
Features:
- Body : ASTM A 216 Gr. WCB
- Ball : SS
- Stem : SS
- Seat & Seal : P.T.F.E.
- Mfg. Std. : BS 5351
- Insp. & Test. : BS 6755
- Lever : CARBON STEEL WITH PVC SLEEVE
- Ends : FLANGED TO ANSI B 16.5 RF 150#
- Hyd.Test Pressure : BODY : 425 Psig ( 30 Kg/Cm²) SEAT : 300 Psig ( 21 Kg/Cm²)
- Size Range : 15 MM TO 300 MM
